| Quantity: | |
|---|---|
BLS-V
BLS
90278990
Application:

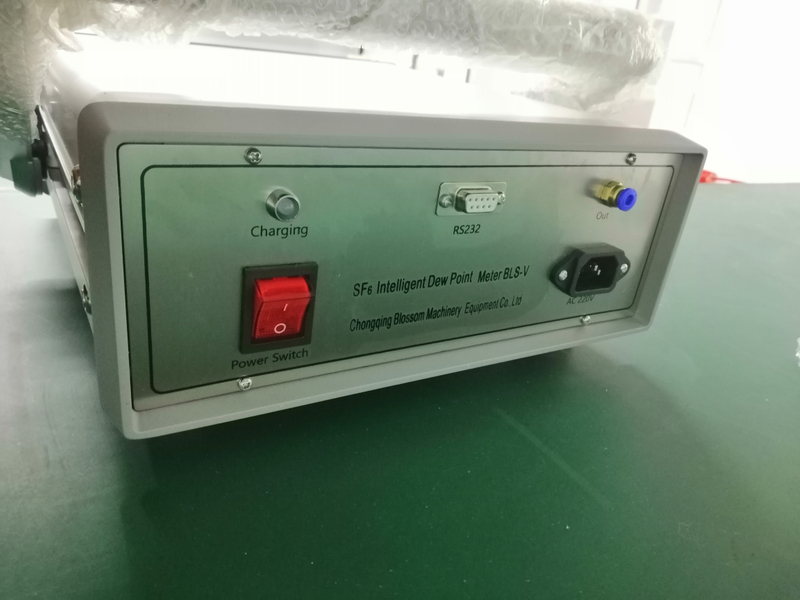

The SF6 Intelligent Dew Point Meter BLS-V is an instrument that uses imported sensors to measure the inert gas in the gas chamber of the equipment. The instrument is easy to measure, easy to maintain, and all components are made of mature and reliable materials, which is cost-effective. It is suitable for the measurement of trace moisture in compressed air, SF6 gas, nitrogen, argon and other gases.
Features:
1.Portable design: the instrument is lighter, easy to carry and use.
2.Fast measurement: No need to wait after the instrument is turned on, it can measure immediately and get the humidity value quickly.
3.Fast gas saving: The gas consumption is only about 2L ( 101.2kPa) during the measurement.
4.Self-locking joint: The self-locking joint imported from Germany is safe and reliable without air leakage. 5.Data storage: Large-capacity design can store up to 50 sets of test data.
6.Clear display: The LCD screen directly displays the dew point, tiny water (ppm), ambient temperature, ambient humidity, time and date, battery power, etc.
7.Built-in power supply: Built-in 4Ah rechargeable lithium battery, which can work continuously for 10 hours once fully charged
Technical Parameters
Dew point | Measuring range | -60 ℃~+20 ℃ |
Measuring accuracy | ±0.5℃ | |
measuring（＋20℃) | <3mins。 | |
Ambient temperature | -40℃~+60℃ | |
Ambient humidity | 0～90％ RH | |
Power supply | AC 220V | |
Built-in rechargeable battery | ||
Battery performance | Charge time: 20 hours; use time more than 10 hours | |
Weight | 4Kg | |
Size | 250× 100×300mm3 | |
Working temperature | -40℃~+80℃ | |
Application:
The SF6 Intelligent Dew Point Meter BLS-V is an instrument that uses imported sensors to measure the inert gas in the gas chamber of the equipment. The instrument is easy to measure, easy to maintain, and all components are made of mature and reliable materials, which is cost-effective. It is suitable for the measurement of trace moisture in compressed air, SF6 gas, nitrogen, argon and other gases.
Features:
1.Portable design: the instrument is lighter, easy to carry and use.
2.Fast measurement: No need to wait after the instrument is turned on, it can measure immediately and get the humidity value quickly.
3.Fast gas saving: The gas consumption is only about 2L ( 101.2kPa) during the measurement.
4.Self-locking joint: The self-locking joint imported from Germany is safe and reliable without air leakage. 5.Data storage: Large-capacity design can store up to 50 sets of test data.
6.Clear display: The LCD screen directly displays the dew point, tiny water (ppm), ambient temperature, ambient humidity, time and date, battery power, etc.
7.Built-in power supply: Built-in 4Ah rechargeable lithium battery, which can work continuously for 10 hours once fully charged
Technical Parameters
Dew point | Measuring range | -60 ℃~+20 ℃ |
Measuring accuracy | ±0.5℃ | |
measuring（＋20℃) | <3mins。 | |
Ambient temperature | -40℃~+60℃ | |
Ambient humidity | 0～90％ RH | |
Power supply | AC 220V | |
Built-in rechargeable battery | ||
Battery performance | Charge time: 20 hours; use time more than 10 hours | |
Weight | 4Kg | |
Size | 250× 100×300mm3 | |
Working temperature | -40℃~+80℃ | |
