BLS-IV
BLS
90278990
Application

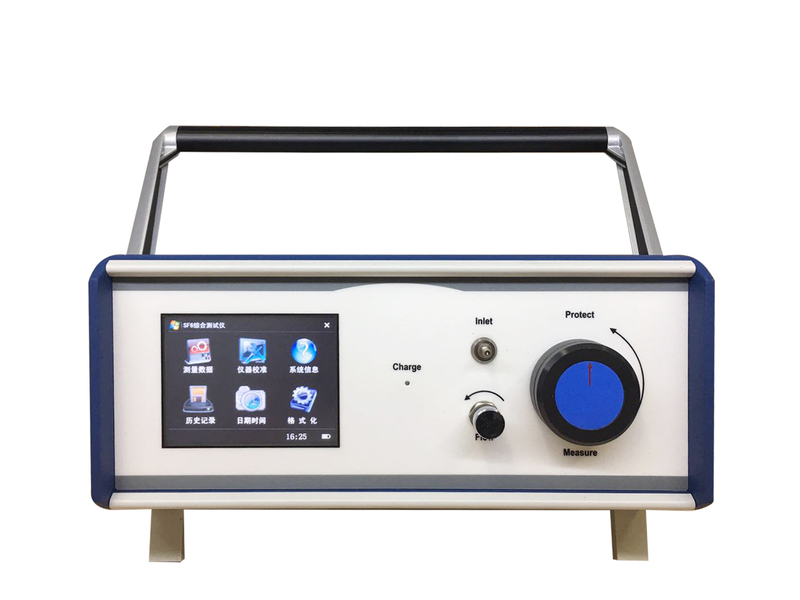

BLS-VI Gas Comprehensive Tester integrates SF6 humidity, SF6 purity, and SF6 decomposition product tests, and concentrates the functions that originally required three instruments to achieve in one instrument. One on-site measurement can complete the detection of three indicators, which greatly saves the gas in the equipment, reduces the workload of users, and improves work efficiency.
The reason why the SF6 gas comprehensive tester has excellent performance is that all the best foreign sensors are used; humidity uses pure imported high-precision humidity sensors, purity uses thermal conductivity sensors with temperature compensation, and decomposition products also use sensors imported from Europe. Color LCD display, real-time display of various parameters, full touch, fool-style operation, massive information storage, built-in rechargeable battery, AC and DC dual use.
Features:
1.Self-calibration: The sensor probe can automatically calibrate the zero point, automatically eliminate the system error introduced by zero point and drift, and ensure the accuracy of each measurement.
2.Easy to operate, large touch LCD screen, simple operation of what you see is what you get.
3.Optional pipeline cleaning device, which automatically cleans the internal pipeline after testing, improves the test speed and accuracy
4.Fast and gas-saving: After the instrument is turned on and enters the measurement state, the dew point measurement time is about 3 minutes each time.
5.Self-locking joint: Adopts imported self-locking joint, which is safe and reliable without air leakage.
6.Data storage: Adopts large-capacity design, which can store up to 1,000 sets of test data.
7.Clear display: The 7-inch large touch LCD screen directly displays dew point, micro-water (ppm), SF6 purity, SO2, H2S, CO content, ambient temperature, ambient humidity, time and date, etc.
8. Built-in USB interface, which can be connected to a PC, and all internal data of the instrument can be uploaded to the computer through the supporting software, which is convenient for data analysis.
9.Built-in large-capacity rechargeable lithium battery, which can work continuously for more than 12 hours on a single charge.
Technical Parameters
Purity | Measurement range | 0%~100% |
Measurement accuracy | ±0.5% | |
Measurement time | <2 minutes | |
Dew point | measurement range | -80 ℃ ~ +20 ℃ |
Measurement accuracy | ±0.5℃ (-80℃ ~ -60℃) | |
Response time (+20℃) | 5 seconds for 63%, 45 seconds for 90% (-60℃ ~ +20℃) 10 seconds for 63%, 240 seconds for 90% (+20℃ ~ -60℃) | |
H2S | measurement range | 0~200ppm |
Minimum detection amount | ≤0.1ppm | |
Accuracy | ±0.5% | |
Repeatability | ≤2% | |
SO2 | measurement range | 0~200ppm |
Minimum detection amount | ≤0.1ppm | |
Accuracy | ±0.5% | |
Repeatability | ≤2% | |
Ambient temperature | -40℃ ~ +60℃
| |
Ambient humidity | 0~100% RH | |
Power supply | AC 100~240V 50/60Hz Built-in rechargeable battery | |
Battery performance | Charging time: 10 hours; use time: more than 12 hours.
| |
Operating temperature | -30℃～＋70℃ | |
Dimensions | 280×190×300 mm | |
Weight | 6.5 kg | |
Application
BLS-VI Gas Comprehensive Tester integrates SF6 humidity, SF6 purity, and SF6 decomposition product tests, and concentrates the functions that originally required three instruments to achieve in one instrument. One on-site measurement can complete the detection of three indicators, which greatly saves the gas in the equipment, reduces the workload of users, and improves work efficiency.
The reason why the SF6 gas comprehensive tester has excellent performance is that all the best foreign sensors are used; humidity uses pure imported high-precision humidity sensors, purity uses thermal conductivity sensors with temperature compensation, and decomposition products also use sensors imported from Europe. Color LCD display, real-time display of various parameters, full touch, fool-style operation, massive information storage, built-in rechargeable battery, AC and DC dual use.
Features:
1.Self-calibration: The sensor probe can automatically calibrate the zero point, automatically eliminate the system error introduced by zero point and drift, and ensure the accuracy of each measurement.
2.Easy to operate, large touch LCD screen, simple operation of what you see is what you get.
3.Optional pipeline cleaning device, which automatically cleans the internal pipeline after testing, improves the test speed and accuracy
4.Fast and gas-saving: After the instrument is turned on and enters the measurement state, the dew point measurement time is about 3 minutes each time.
5.Self-locking joint: Adopts imported self-locking joint, which is safe and reliable without air leakage.
6.Data storage: Adopts large-capacity design, which can store up to 1,000 sets of test data.
7.Clear display: The 7-inch large touch LCD screen directly displays dew point, micro-water (ppm), SF6 purity, SO2, H2S, CO content, ambient temperature, ambient humidity, time and date, etc.
8. Built-in USB interface, which can be connected to a PC, and all internal data of the instrument can be uploaded to the computer through the supporting software, which is convenient for data analysis.
9.Built-in large-capacity rechargeable lithium battery, which can work continuously for more than 12 hours on a single charge.
Technical Parameters
Purity | Measurement range | 0%~100% |
Measurement accuracy | ±0.5% | |
Measurement time | <2 minutes | |
Dew point | measurement range | -80 ℃ ~ +20 ℃ |
Measurement accuracy | ±0.5℃ (-80℃ ~ -60℃) | |
Response time (+20℃) | 5 seconds for 63%, 45 seconds for 90% (-60℃ ~ +20℃) 10 seconds for 63%, 240 seconds for 90% (+20℃ ~ -60℃) | |
H2S | measurement range | 0~200ppm |
Minimum detection amount | ≤0.1ppm | |
Accuracy | ±0.5% | |
Repeatability | ≤2% | |
SO2 | measurement range | 0~200ppm |
Minimum detection amount | ≤0.1ppm | |
Accuracy | ±0.5% | |
Repeatability | ≤2% | |
Ambient temperature | -40℃ ~ +60℃
| |
Ambient humidity | 0~100% RH | |
Power supply | AC 100~240V 50/60Hz Built-in rechargeable battery | |
Battery performance | Charging time: 10 hours; use time: more than 12 hours.
| |
Operating temperature | -30℃～＋70℃ | |
Dimensions | 280×190×300 mm | |
Weight | 6.5 kg | |
