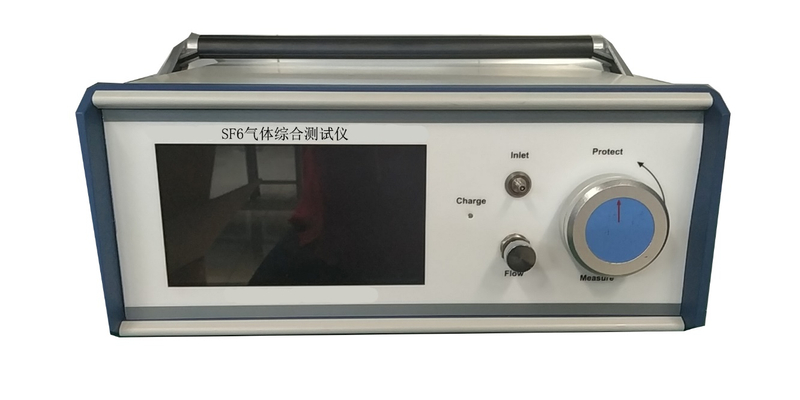

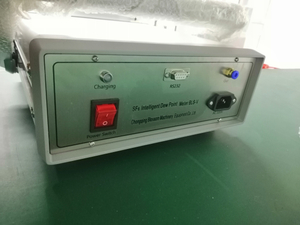

SF6 Dew Point Meter H2S SO2 HF CO B2 O2 Analyzer BLS-D

Application

The SF6 comprehensive tester integrates SF6 dew point test, SF6 purity test, and SF6 decomposition product tester into one instrument, and concentrates the functions that originally required three instruments to achieve on one instrument. One on-site measurement can complete the detection of three indicators, greatly saving the gas in the equipment. At the same time, it also reduces the workload of users and greatly improves work efficiency.

Features:

● Long-life detection components

● Comprehensive multiple measurement methods to meet different measurement requirements

● Large LCD display, Chinese and English menus, easy to operate

● Users can perform calibration on-site to ensure reliable use on site

● Touch screen operation, simple and easy to use

● Synchronous display of various data

● Large-capacity data storage

Technical indicators

①Dew point: Range: -80 ℃～+20 ℃; Accuracy: ≤±1.0℃

②SF6 decomposition products:

H2S range: 0～100μL/L; Accuracy: ±0.3μL/L when the measured value is ≤10μL/L; ±3% when the measured value is >10μL/L;

SO2 range: 0～100μL/L, 0～2000μL/L; Accuracy: ±0.3μL/L when the measured value is ≤10μL/L; ±3% when the measured value is >10μL/L;

HF range: 0～10μL/L; Accuracy: ±0.3μL/L when the measured value is ≤10μL/L; ±3% when the measured value is >10μL/L;

CO range: 0～500μL/L; Accuracy: ±2.0μL/L when the measured value is ≤50μL/L; ±4% when the measured value is ＞50μL/L;

N2 range: 0～100%; Accuracy: ±0.5%;

O2 range: 0～1%; Accuracy: ±0.05%;

③SF6 purity: Range: 0~100%; Accuracy: ±0.5%

CF4 concentration: Range: 0～80%; Accuracy: ±0.5%
