| Quantity: | |
|---|---|
BLS-2
BLS
90278990
Application
The faults of SF6 electrical equipment are divided into internal faults of the body and faults of the operating mechanism; the faults of the solid insulation inside the body pose the greatest threat to the safety of the equipment. Its internal faults can be divided into two categories: discharge and overheating. The discharge type faults are further divided into suspended potential discharge, ground discharge and inter-turn discharge.

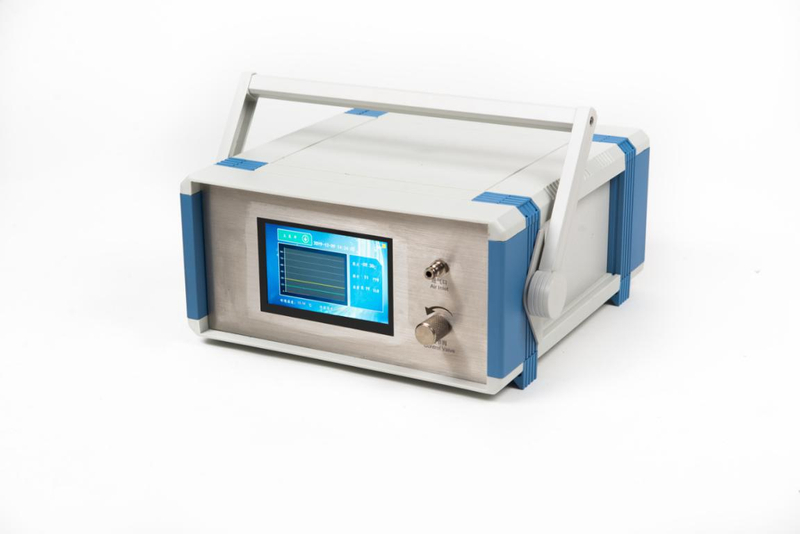

At present, the commonly used electrical tests at home and abroad are generally carried out in a power-off state, and the detection rate of the insulation that poses the greatest threat to safety is very low. The KDFJ-2 decomposition product tester produced by our company is intelligent, with high sensitivity, stability, and easy operation. It can automatically diagnose and put forward treatment opinions based on the detected concentration, providing a simple and effective means for the early detection of internal faults of SF6 electrical equipment.
Features:
● Adopting anti-cross interference technology, high accuracy and good repeatability
● With dynamic compensation function of ambient temperature
● Built-in imported electronic mass flowmeter can accurately control the gas flow
● Fast and gas-saving: After starting up and entering the measurement state, the measurement time of each decomposition product is less than 2 minutes.
● Optional pipeline cleaning device, which automatically cleans the internal pipeline after testing, improving the test speed and accuracy
● Self-locking joint: using imported self-locking joint, safe and reliable, no leakage.
● Graphical operation interface, more convenient to use
● Built-in large-capacity rechargeable lithium battery, can work continuously for more than 10 hours on a single charge.
Technical indicators
H2S
measurement range 0~200ppm
Minimum detection amount ≤0.1ppm
Accuracy ±0.5%
SO2
measurement range 0~200ppm
Repeatability ≤2%
Accuracy ±0.5%
Ambient temperature -40℃～＋60℃
Ambient humidity 0～100% RH
Power supply AC 100～240V 50/60Hz
Built-in rechargeable battery
Battery performance Charging time: 10 hours; use time more than 12 hours.
Working temperature -30℃～＋70℃
Dimensions 280×150×300 mm
Weight 5 kg
