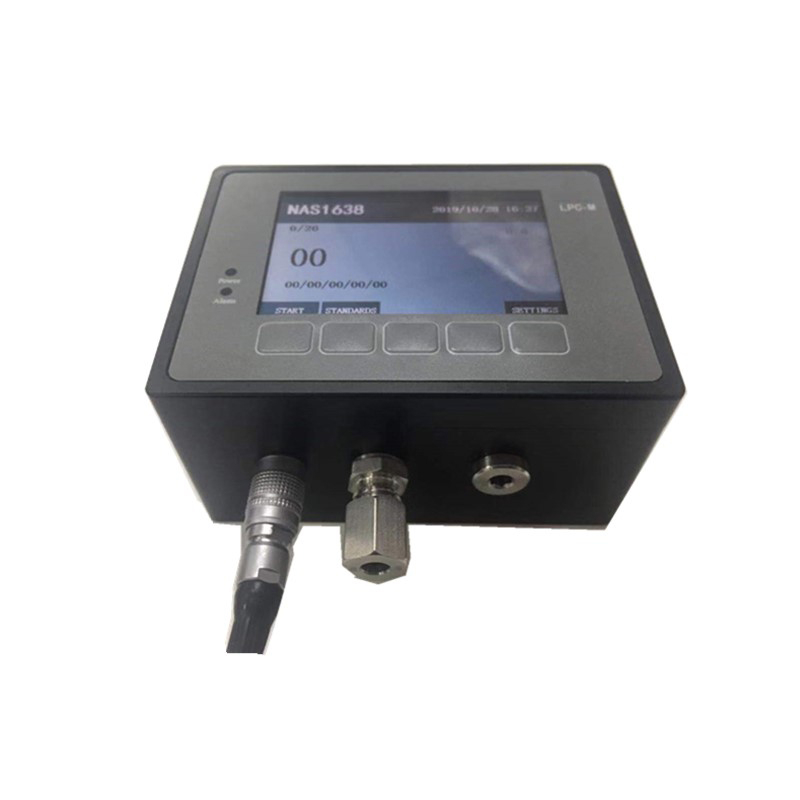

Online Particle Counter with Moisture Sensor LPC-M

The LPC-M online particle counter is photoresist (light shading) counting principle specified by the International Hydraulic Standards Committee.
Availability:
Quantity:
Inquire Add to Basket

The LPC-M online particle counter is photoresist (light shading) counting principle specified by the International Hydraulic Standards Committee. It is specially used for on-line measurement of oil contamination level. It has the advantages of small volume, light weight, fast detection speed, high precision and good repeatability, and can work under high temperature and high pressure environment. It is applicable for the measurement of engine oil, gear oil, transformer oil (i.e. insulating oil), hydraulic oil, lubricating oil, synthetic oil and other oils, widely used in aerospace, petrochemical, transportation ports, steel metallurgy, automobile manufacturing and other fields.


1. Adopts the principle of photoresist (shading), high-precision laser sensor, small size, high precision, stable performance;

2. Suitable for on-site inspection, real-time monitoring of particle contamination in the oil system;

3. Built-in data analysis system, can display the real data of the particle size of each channel and automatically determine the sample level;

4. Optional pressure reducing device for online high pressure measurement;

5. With volume flushing and duration flushing mode, convenient for usage and maintenance;

6. Built-in ISO4406, NAS1638, SAE4095, GJB420A, GJB420B, ГOCT17216, GB/T14039 and other particle pollution level standards;

7. Built-in calibration function, can be calibrated according to GB/T21540, ISO4402, GB/T18854 and other standards;

8. Any alarm level can be set to achieve pollution degree or cleanliness detection;

9. RS232 or RS485 interface, can be connected to computer or other equipment for data monitoring and processing;

10. Large storage, optional storage in the internal or external storage device;

11. Firm exterior structure for complex working environment;

12.Sturdy structure, suitable for complex working environment

13.The upper and lower positions of the oil outlet are optional, which is convenient for installation.

14.Can test continuously or set test interval arbitrarily

15.Optional 4G module, support remote data monitoring, historical data, and curve query on mobile phones or computers

16.Optional built-in moisture and temperature sensor module


Light source

semiconductor laser

Flow rate range

20-500mL/min

Viscosity of the sample to be tested

≤350cSt

Online detection pressure:

0.1-3Mpa (optional decompression device maximum pressure up to 40Mpa)

Particle size range

1-500μm (select different types of sensors)

Interface

USB interface, RS232 interface, RS485 interface

Data storage

Provide 1000 sets of data storage space and support USB storage

Sensitivity

1μm or 4μm (c)

Limit coincidence error

10,000 grains/ml

Counting volume

1-999ml

Counting accuracy

±0.5 pollution degree levels

Protection level

IP56

Test interval

1 second - 24 hours

Temperature collection T

Collection range: 1-100℃;

Measurement accuracy: 1℃

Response time: 30s

Water activity collection aw

Collection range: 1-100% RH

Measurement accuracy: 1% RH

Response time: 30s

Absolute water content AH

Collection range: 1-120ppm

Measurement accuracy: 1ppm

Response time: 30s

Test sample temperature

0-80℃

Working temperature

-20-60℃

Power supply

AC 220V±10%, 50/60Hz or DC12-40V

Weight

1.1kg

Dimension

115×85×60mm
