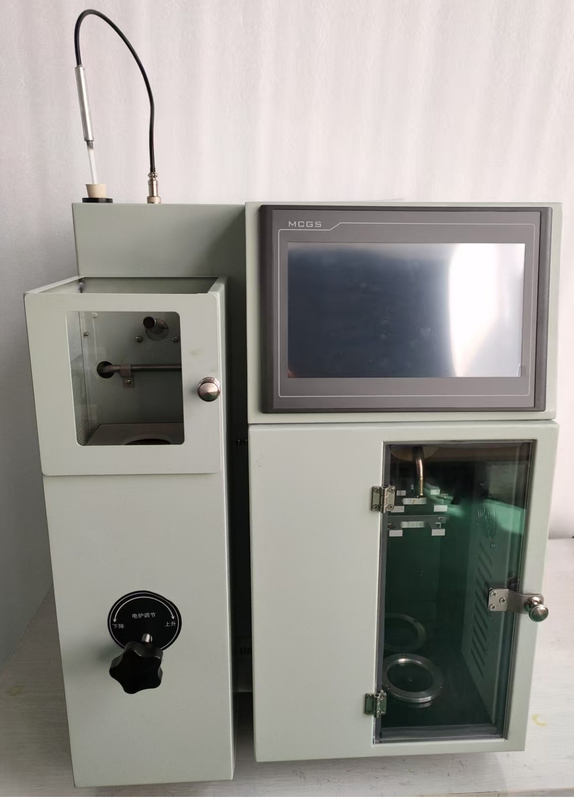

BLS-6536F
BLS
90278990
I.Application
The instrument is designed and manufactured according to GB/T26984, ASTM D2892,D5236. It’s for testing natural gasoline, motor gasoline, aviation gasoline, jet fuel, solvents with special boiling points, naphtha, petroleum solvent oil, kerosene, diesel, crude diesel, distillate fuels and similar petroleum products.
It adopts modular design, the detection part adopts advanced sensors and high-precision AD conversion circuits, the main control part adopts multiple industrial applications, high-reliability 64-bit RISC structure, ultra-low power consumption microprocessor, and good and reliable communication to form each module into a unified and reliable measurement and control platform. All operating parts are driven by stepper motors, which have the characteristics of high precision, low noise, reliable operation, low maintenance and long service life. The running program adopts high-quality and simplest modular program design, and is organically combined with hardware, so that all the work of heating and cooling, liquid level tracking, temperature recording, printing, etc. in the distillation measurement process is automatically completed, achieving a one-key operation mode of outputting results, and the measurement results are automatically compensated under standard atmospheric pressure, which increases the comparability of the test results.
II.Features
Standards | GB/T26984,ASTM D2892,D5236. | |
Spec. | Structure | The instrument adopts a single-tube modular structure, a low-voltage centralized direct distillation heating method, a small circulation block cold bath constant temperature, an American imported infrared measuring cylinder reading system, an automatic constant temperature recovery chamber, and a multi-chip microcomputer main control component. It has the function of automatically completing the real-time detection and automatic correction of atmospheric pressure sampling, making its function and work stable and reliable. The German JUMO original temperature sensor and the CNC optical detection system can automatically complete the petroleum product distillation experiment. This instrument has a reasonable structure, stable performance, and simple operation. It is an ideal analysis and detection equipment. |
Dimension | 640×640×863（mm） | |
Weight （kg） | 70kg | |
| Temp. range | 0～400℃，Temperature measuring element: PT100 (German JUMO company original temperature measuring sensor） |
Control accuracy | ±0.1℃ | |
Volume measurement range
| 0-100ml (infrared graduated cylinder reading system imported from the United States) 0.01 ml per step | |
Volume measurement accuracy
| <0.1ml | |
Condensing tube temperature range
| -10 to 70 ℃ arbitrarily set; temperature control accuracy: ±0.1 ℃ compressor refrigeration (German imported Danfoss) antifreeze is added to the bath, and with a circulation system, constant temperature uniformity, non-volatile and flammable, long-term no need to replace, | |
Temperature control range of measuring cylinder
| 0 to 60℃ arbitrarily set; compressor cooling (Danfoss imported from Germany), with fan in the recovery room to make the temperature uniform and good sealing to prevent air convection | |
distilling rate
| 4～5ml/min | |
heater power
| Max. 1200W; low voltage concentrated direct distillation heating method, | |
| 10-inch color LCD display. The graphics and text display is delicate and without jagged edges, with bright colors and high display resolution; the integrated display screen frame made of plastic injection molding is beautiful and generous; the full Chinese operation interface is intuitive. At the same time, it has the authority management function to effectively prevent non-professionals from setting the key parameters of this measuring instrument. | |
Operation system | WindowsXP operation system,Software can be upgraded
| |
Print function | 20 columns of dot matrix Chinese characters printing, the instrument has a built-in micro thermal printer, which prints more quietly, quickly and clearly. The experimental results can be printed automatically. | |
Safety function | 1) The instrument is equipped with a liquid level sensor in the cold bath. If the antifreeze is reduced to a certain level, the instrument will automatically stop heating and stop the experimental operation. When the antifreeze is full, the instrument has its own overflow pipe, which can be directly discharged. It effectively prevents the heating tube in the cold bath from burning out and the compressor from being damaged. 2) The instrument has its own safety temperature setting function, and the setting range (room temperature-400℃) can be set arbitrarily. If the heating temperature exceeds the set safety temperature value, the instrument will automatically stop heating. 3:) The instrument has its own heating power safety setting function, and the setting range (0-1200W) can be set arbitrarily. If the heating power exceeds the set safety heating power value, the instrument will automatically stop heating to prevent safety accidents caused by misoperation and component damage. | |
Input system | Touch screen input, the instrument comes with a touch screen letter and numeric keyboard, which can input Chinese and English, uses human body induction touch buttons, has no mechanical contacts, is dustproof and waterproof, anti-radio frequency interference, and has a long service life. You can also connect an external keyboard for input. | |
Error correction
| Users can set parameters according to actual conditions, and the instrument can quickly calculate the measurement results and errors. If the measurement results are out of tolerance, the instrument will automatically re-measure. The calibration must be carried out with a standard oil sample to correct the error. | |
Data output | The remote wireless communication interface communicates with the host computer to facilitate the formation of a centralized management system. This machine can be connected to the LIMS system. New remote control | |
| 1.Fully automatic control, single tube 2.Distillation programs can be called out, modified, saved, set and added at will; keyboard control, program control, multiple modes are easy to operate 3.Experimental results: experimental results can be stored, checked and printed at any time, built-in micro thermal printer automatically reports test results, and compares and calculates the repeatability and reproducibility of multiple distillation results; 4.Four ending methods: end point ending, temperature and volume ending, and dry point ending method; 5.Built-in German imported atmospheric pressure detection module automatically completes air pressure correction, so that the experiment is not affected by atmospheric pressure changes and automatically converts results; 6.With nitrogen fire extinguishing function; 7.Automatically control the distillation rate at 4-5ml/min; 8.With steam temperature, heating temperature, condenser temperature, measuring cylinder bath temperature, measuring cylinder receiving volume simulation display function; 9.Adopts the high resolution of the infrared measuring cylinder reading system imported from the 10.United States, the cold bath constant temperature adopts the built-in small circulation method, and uses the German imported Danfoss compressor, the constant temperature is reliable without lag and not easy to damage, The darkroom's automatic constant temperature is not affected by environmental factors. 11.Correction function: can calibrate atmospheric pressure, steam temperature, sensors, and measuring cylinders; 12.Anti-boiling safety solution ensures safe operation, anti-overheating intelligent control, and ensures the accuracy of boiling range data | |
Other parameters | environmental conditions
| 10℃～90℃ |
Power supply | AC220V±10%，50Hz。 | |
