BLS-86-2
BLS
90278990

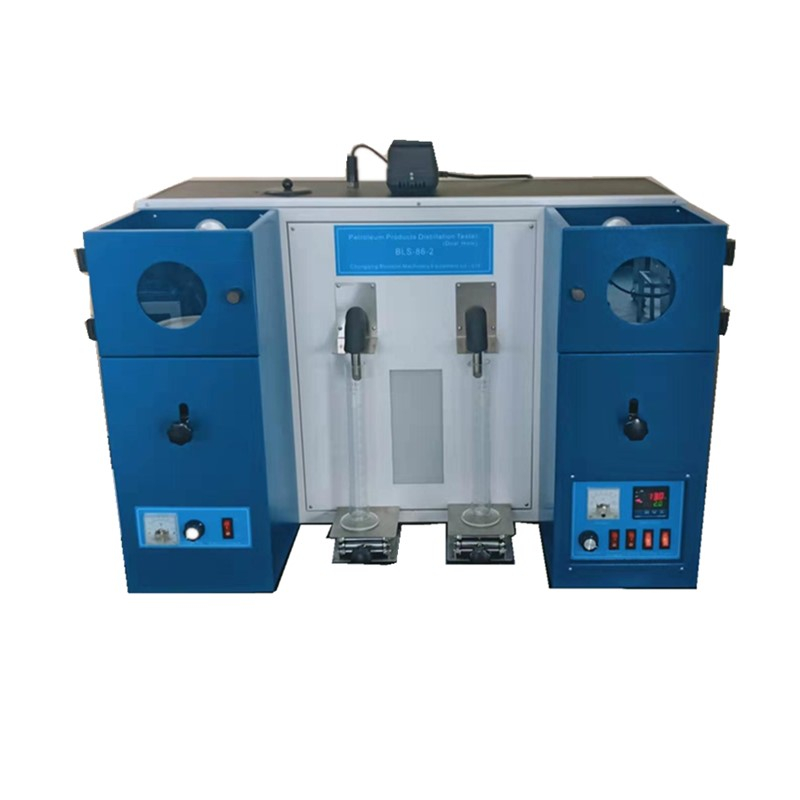

I. Application
The instrument is designed and manufactured according to the requirements of ASTM D86, and the People's Republic of China standard GB/T6536 Petroleum Product Distillation Measurement Method, applicable to determine the distillation range of gasoline, aviation gasoline, jet fuel, special boiling point solvent, naphtha , diesel, distilled fuel, etc.
II. Technical Parameters
( 1) Working power supply: AC220V±10%, 50Hz.
(2) Electric furnace heating power: 1200W. (double)
(3) Measuring cylinder volume: 100 mL, indexing 1 mL.
(4) Distillation flask: 125mL, in line with GB/T6536 requirements.
(5) Thermometer: Fully dip stick type, (-2 ~ +400) °C, the index is 1 °C.
(6) Electric furnace movable plate: silicon carbide plate, the hole diameter is φ38mm, φ50mm.
(7) Temperature controller: Temperature control range: arbitrarily set from (0~90) °C;
temperature control accuracy: ±0.5 °C; temperature display mode: LED digital display.
(8) Ambient temperature: ≤ +30 °C.
(9) Relative humidity: ≤ 85%.
III.Features
1. The distillation heating part is composed of independent circuit control box. The user can adjust the heating power of the control box according to different requirements.
2. The control box is made of cold-rolled steel plate. There is observation window on the upper front with electric furnace inside. The circuit control part is installed in the lower part of the cabinet.
3. The electric furnace part is composed of silicon carbide furnace plate, 1200W/220V electric heating wire and high temperature resistant silicon carbide plate. The position of the electric furnace can be adjusted by the lifting adjustment knob on the control box to adjust the relative position of the distillation flask and the condensing nozzle. Its heating power is controlled by voltage regulation.
4. The condensate tank is made of thick stainless steel plate with built-in heating, temperature measuring and stirring device, which is the common water tank of the distillation condensing system. The condenser is used independently. The stirring device is motor driven impeller to rotate.
5. The size of the condensing pipe meets the requirements of GB/T 6536.
