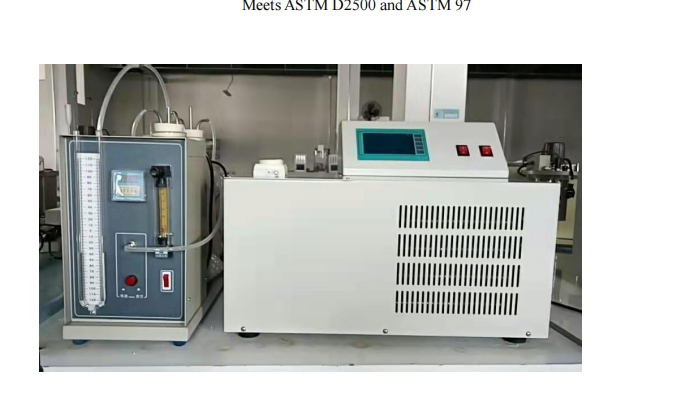

Pour Point and Cold Filter Plugging Point Tester

I. Overview:

This instrument is based on GB / T510, GB15308, GB3535 and other design and manufacturing requirements, under the conditions specified in the national standard, the sample was placed in the test tube of liquid containing a fluid sample tube alcohol bath cooling, liquid flow is stopped the maximum temperature of the flow is the pour point of the sample; for the determination of transformer oil, lubricating oil and the freezing point value light oil and various chemical raw materials, widely used in electricity, chemicals, railways, oil and other fields.

Second, the instrument features:

1. English LCD display, PID intelligent temperature control;

2. Imported compressor refrigeration Danvers, stable, low noise, fast cooling;

3. Use high-precision PT100 temperature sensor, high precision;

4. Instrument timed reminder alarm;

Third, the technical parameters

1. Temperature range: -45 ℃ to Room temperature

2. Accuracy: Refrigeration ± 0.3 ℃

3. Test: manual testing;

4. Sensor: PT100 platinum resistance;

5. Power: 400W-1000W;

6. Power supply voltage: AC220V 50Hz;

7. For the environment: recommendations from room temperature to 45 ℃;

8. Instrument Weight: about 40KG;
