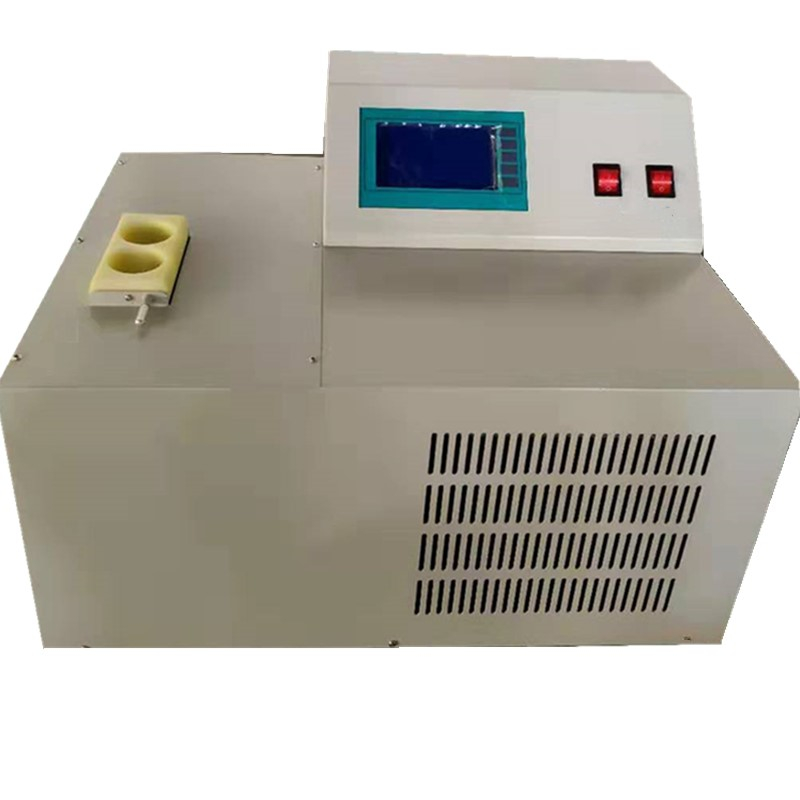

I. Overview
The instrument is designed and manufactured in accordance with GB/T510, GB15308, GB3535 etc. Under the conditions prescribed by the national standard, put the sample into test tube and cool it by alcohol bath. The highest temperature when the liquid fluid sample stops flow is the cloud point of the sample. It is used to determinate the cloud point of transformer oil, lubricating oil and light oil and all kinds of chemical raw materials in electric power, chemical industry, railway, petroleum and other fields.
II. Features
1.English LCD display,PID intelligent temperature control.
2. Imported Danvers refrigeration compressor with stability, low noise and fast refrigeration.
3.High precision PT100 temperature sensor with high test precision.
4.Has timing and alarm function.
III. Technical parameters
1.Temperature rage: -50℃-100℃.
2.Precision:refrigeration±0.2℃,heat±0.1℃
3.Testing method: Manual.
4.Sensor: PT100 platinum resistance.
5.Power: 400W-1000W.
6.Supply voltage: AC220V50Hz;
7.Working environment: room temperature-45℃.
8.Weight: about 40 kg
