BLS-FA97
BLS
90278990
Application
The instrument complies with GB/T510、GB/T353, ASTM D97 and ASTM D2500.

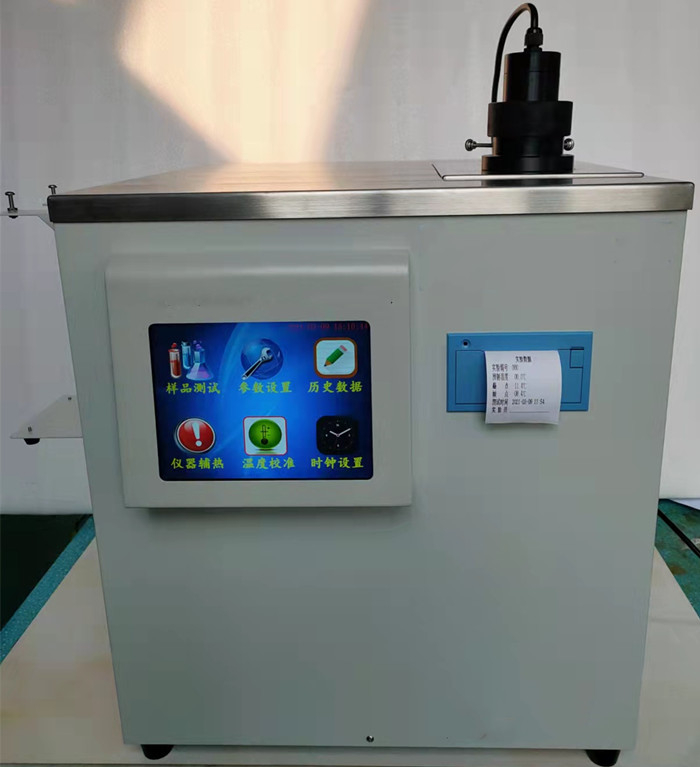

The instrument is used to determine the freezing point and pour point of transformer oil, lubricating oil and light oil. The instrument adopts color touch LCD screen display, English man-machine dialogue interface, convenient and intuitive operation, and has software prompt modification function for misoperation. The interface is clear, the test data can be printed, and the test process is fully automated. It is an ideal freezing point and pour point measurement product.
Features
1. High test accuracy, short test time, adopting small metal cold trap, trace samples, program cooling;
2. Adopt graphics to dynamically simulate working conditions, and the screen reproduces the test process;
3. Real-time tracking of changes in oil temperature;
4. The whole process is automatically detected, the test results are accurate, repeatable, stable and reliable, easy to operate, and the experimental results can be printed;
5. LCD display, touch control, easy to use, can be heated to 25 ℃ or cooled to -70 ℃;
6. The tilt frame is automatically tilted at 45 degrees during testing, which fully meets the standard. The testing method is optional, and it can be tested quickly or as normal;
7. High-performance compressor refrigeration, long service life;
8. Has fault diagnosis function, and can prompt operation;
Main Technical Parameters
Freezing point range: light oil within the range of 5℃~-70℃;
Resolution: 0.1℃;
Temperature control accuracy: ±0.1℃;
Number of experimental holes: 2 holes;
Temperature control range: 25℃~-70℃;
Temperature control method: PID automatic adjustment;
Refrigeration system: two-stage cascade refrigeration
Ambient temperature: 5~40℃;
Display mode: 8-inch color LCD touch screen English display;
Relative humidity: ≤80%;
Power supply, frequency: AC220V ±10% 50Hz±1Hz;
Power: ≤600W;
Dimensions: 500 mm (length) × 490 mm (width) × 660mm (height);
