T960
90278990
I.Introduction

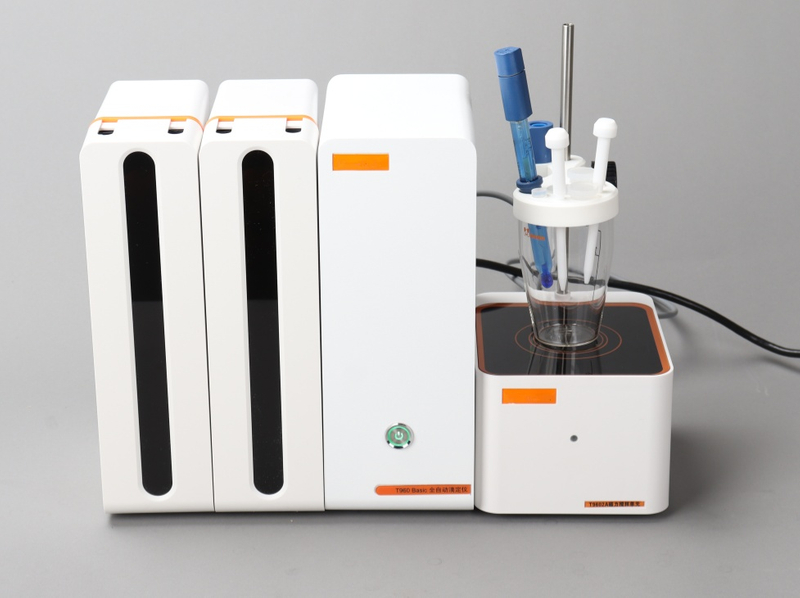

The T960 BASIC TAN/TBN Titrator is suitable for determination of Total Acid Number (TAN) or Total Base Number (TBN) of oils and fats. The acid number expresses the quantity of base required to neutralize all acidic constituents of the sample. It is a quality feature for freshness of oils and fats. The base number indicates the quantity of acid which can be neutralized by additives in mineral oils.
The device is conform to standards IEC 62021-1, ISO 3771, ASTM D 664, ASTM D 2896, ASTM D 4739. The measurement uses a potentiometric titration method in an anhydrous medium. The titration with titrant starts, once the oil sample is dosed into the reagent. The user has to enter the sample weight into the menu. The titration speed is precisely adjusted to the reaction rate by control algorithms.
The titration is performed automatically until the endpoint indication of measurement. At the end of the measurement, results are shown in mg KOH/g oil or several other units.
II. Applications
The value of TAN/TBN is an indication of age and quality of oils and fats. The device is suitable for analysis of;
1. Transformer Oils
2. Natural and artificial fats
3. Mineral oil products
4. Lubricants
5. Food fats (e.g.. olive oil, butter)
III.Advantages
1.Complete measuring system for the determination of TAN/TBN 2.Fully-automatic volumetric titration.
3.Precise adjustment of the titration parameters by control algorithms and high precision motor.
4.Preset measurement method allows an immediate start.
5.The result output can be adjusted to your needs by using a formula generator.
IV.Details
T960 BASIC TAN/TBN Titrator consists of;
1. an automatic volumetric titrator with potentiometric
2. pH indication and integrated temperature sensor (aqueous or non-aqueous)
The determination of TAN/TBN value is based on
1.an acid-base-titration in an anhydrous medium
2.a precise indication by an electrode filled with anhydrous ethanol/LiCl
Steps of the analysis are
1. Determination of the blank value
2. Standardization of the titration solution
3. Titration of oil samples
V. Technical Parameters
Titration module | Potentiometric |
mV Measuring range | -2000.0mV～+2000.0mV |
mV Measuring | Resolution: 0.1mV, Accuracy: 0.1mV±0.03% |
pH Measuring range | -20.000pH～+20.000pH |
pH Measuring | Resolution: 0.001pH Accuracy: 0.003pH |
Temp.Measuring range | -5～120℃ |
Temp. Accuracy | ±0.1℃ |
Maximum number of titration modules | 4 (2 modules in the standard package) |
Maximum number of simultaneous filling modules | 4 (2 modules in the standard package) |
Burette optional | 1mL 5mL 10mL 25mL (10ml burette in the standard package ) |
Burette resolution | 1/1500000 |
Burette refill time | 16 seconds (100% filling speed) |
User grading management system | 3 level (Customizable operation permissions) |
Audit trail | ○ |
Controlled by | PC |
WiFi module | ○ |
Stirring | Magnetic stirring, upper stirring (optional) |
Electrode interface type | mV/pH measuring electrode interface, reference electrode interface |
PT1000 temperature electrode interface | |
Autosampler (Optional) | Equipped with 1 independent analysis station, optional 16-position 100mL autosampler, 12-position 250mL autosampler, and 18-position 50mL autosampler |
