T860
90278990

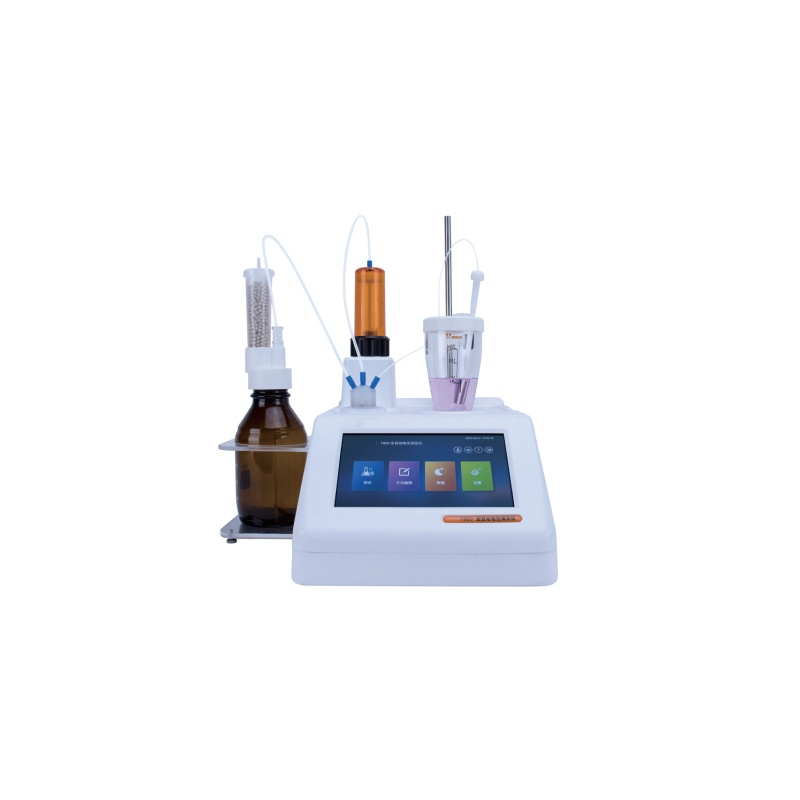

T860 Auto Titrator
T860 is a durable, accurate, cost-effective automatic potential titrator. It uses an modular and compact design, can finish acid-base titration, redox titration, precipitation titration and complexation titration and other common titration.
Compact integrated design
Easy to pick up to anywhere you need to, the host, stir, titration, reagent
bottle holder are integrated with the shell.
7-inch color touch screen, inbuilt Android-based operating system,
multi-status indicator light.
The main unit is Splash-proof. And the titration base has the liquid drainage
design to prevent liquid deposition and penetration.
The reagent bottle has sealing cover, can fill the effective isolation
adsorption material, to prevent any polluted by the air or the escaped odour.
Zero-dead volume solenoid valve,changing easily for PTFE burette.
Smaller body, higher performance
Support MET, DET, EP and other titration modes, can finish acid-base,
precipitation, nonaqueous, redox, complexation and other titration.
With programmable liquid dispensing function, can set the liquid adding
volume, liquid adding interval, liquid adding times, to prepare the solvent.
Support the function of Custom formula editor, to let the complicated
calculation’s results easily.
All detailed titration nodes can be viewed, and the end point can be
manually set and saved as associated data, reducing unnecessary repeated
laboratory tests.
Historical data can be viewed during testing, let the error correction in time.
Multiple self-inspecting function, pH electrode calibration, burette calibration.
The methods are programmable and storable, and can be one-click call out.
Perfect laboratory data security management
Four levels of authority for ID, and each level ID’s authority is settable.
E-Signature, Data exporting is tamper-proofing, and so on.
Support password security setting, and also can set the passwords’ aging
time.
Support PDF or Excel formats data export,both list or detailed reports.
Support wireless connecting to laser printer for A4 paper printing.
Storage space: 4G
With a multi-level retrieval function, you can quickly search the target data
from the data base.
Technical Data
Measurement range:
mV: -2000.0mV~+2000.0mV,
pH: -20.000pH~+20.000pH,
Temperature: -5~120℃
Resolution:0.1mV, 0.001pH, 0.1℃
Accuracy:0.1mV±0.03%; 0.003pH; ±0.1℃
Burette optional:Standard 15mL burette, 25ml is optional
Burette resolution:1/48000
Burette refill time:16 seconds (100% filling speed)
Stirring:Magnetic stirring
User grading management :4 levels (Customizable operation permissions)
Communication port :mV/pH measuring electrode interface, reference electrode interface, PT1000
temperature electrode interface, 2*USB, 1*RS232, power wire port
