BLS-240
BLS
90278990

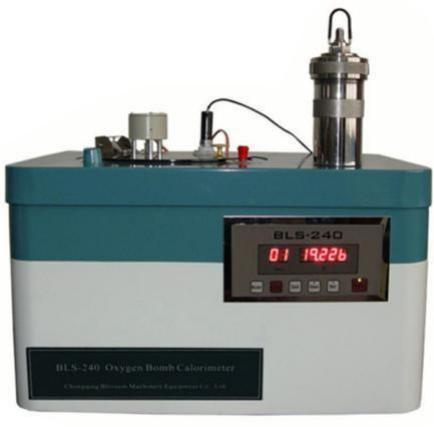

I. Summary
The instrument is designed and made as per the National Standard of People’s Republic of China GB/T213-2008 and ASTM D240, ASTM D5865 Test Method for Calorific Value of coal, GB/T384-1988 Test Method for Calorific Value of Petroleum Products and Calibration Regulation of People’s Republic of China JJG672-2001 Oxygen Bomb Calorimeter.
The heat capacity of the instrument is 14000 J/K ～ 15000 J/K, and it is suitable to
determine calorific value of combustible materials such as petroleum products without water (gasoline, jet fuels, diesel oil and fuel oils, etc.), coal, coke and paraffin, etc.
II. Main technical features
This instrument adopts sealed oxygen bomb. The whole structure adopts stainless steel
material. The strength is enough to resist the max pressure (60~70 atmospheric pressure) when the solid burning. And it can resist the bigger pressure when liquid fuel burning.
The inner water cylinder is composed of stainless steel sheet.The cross section is pyriform and the capacity is 3kg. The water cylinder is equipped with electric stirrer inside. It ensures the temperature in the water cylinder uniform.
The external water jacket is double layer container. It filled with water when doing determination.It make the water temperature in the cylinder uniform by water jacket
stirrer and form the constant temperature environment meeting the requirements of test.
III. Main technical specifications
Heat capacity: 14400 J/K～15000 J/K
Resolution: 0.001 K
Measurement accuracy: ± 60J/g
Repeatability : ≤0.2% (Grade C)
Pressure endurance of oxygen bomb: 20 MPa
Temperature measurement range: 10 ℃~35 ℃
Ambient temperature: 20±5 ℃, the fluctuation is not more than 1 ℃ during one test
Data saved: 31 pieces
Relative humidity: ≤85%
Power supply: AC 220V±5%, 50 Hz
Dimension&Weight: Host:77cm*61cm*57cm;48kg
Accessory:50cm*41cm*31cm;17kg
Total power consumption:Less 150W
(Note: Pellet press machine is optional accessory)
I. Summary
The instrument is designed and made as per the National Standard of People’s Republic of China GB/T213-2008 and ASTM D240, ASTM D5865 Test Method for Calorific Value of coal, GB/T384-1988 Test Method for Calorific Value of Petroleum Products and Calibration Regulation of People’s Republic of China JJG672-2001 Oxygen Bomb Calorimeter.
The heat capacity of the instrument is 14000 J/K ～ 15000 J/K, and it is suitable to
determine calorific value of combustible materials such as petroleum products without water (gasoline, jet fuels, diesel oil and fuel oils, etc.), coal, coke and paraffin, etc.
II. Main technical features
This instrument adopts sealed oxygen bomb. The whole structure adopts stainless steel
material. The strength is enough to resist the max pressure (60~70 atmospheric pressure) when the solid burning. And it can resist the bigger pressure when liquid fuel burning.
The inner water cylinder is composed of stainless steel sheet.The cross section is pyriform and the capacity is 3kg. The water cylinder is equipped with electric stirrer inside. It ensures the temperature in the water cylinder uniform.
The external water jacket is double layer container. It filled with water when doing determination.It make the water temperature in the cylinder uniform by water jacket
stirrer and form the constant temperature environment meeting the requirements of test.
III. Main technical specifications
Heat capacity: 14400 J/K～15000 J/K
Resolution: 0.001 K
Measurement accuracy: ± 60J/g
Repeatability : ≤0.2% (Grade C)
Pressure endurance of oxygen bomb: 20 MPa
Temperature measurement range: 10 ℃~35 ℃
Ambient temperature: 20±5 ℃, the fluctuation is not more than 1 ℃ during one test
Data saved: 31 pieces
Relative humidity: ≤85%
Power supply: AC 220V±5%, 50 Hz
Dimension&Weight: Host:77cm*61cm*57cm;48kg
Accessory:50cm*41cm*31cm;17kg
Total power consumption:Less 150W
(Note: Pellet press machine is optional accessory)
