BLC-M93
BLS
90278990
Introduction&Features

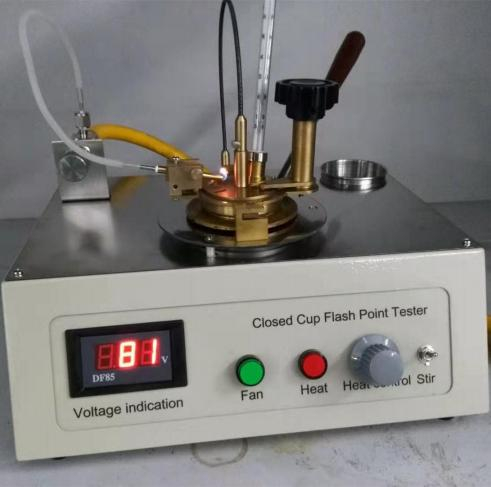

This device tests the flash point of petroleum products, and complies to the regulated methods
of ASTM D93, SH/T 0315 Closed Cup Flash Point Tester Technical Conditions.
1. Highlighted LED timely displays voltage; with heating power continuously and step- less adjustable; temperature rising precision greatly improved.
2. With temperature rising adjustment button and air cooking control button.
3.Designed totally regarding national standard; stirring high and low speedtwo-way regulation.
4.High precision air valve adjustment, safe and reliable.
Technical parameters
Heating device | Heating power: 600W, continuously adjustable: 0-600W |
Electric stirring device | Motor and flexible axle jointing stirring; stirring vane: 8×40mm |
Standard oil cup | Inner diameter: 50.8mm; Depth: 56mm Oil test capacity groove depth: 34.2mm Oil test capacity: about 70ml |
Ignition device | Gas ignition.(or other civil use gases ) |
Thermometer | Internal marked mercury thermometer; complies to GB514 standard. (1) scale:-30~ 170℃; scale division: 1 ℃ (2) scale: 100~300℃; scale division: 1 ℃ |
Working power | AC 220V±10％, 50Hz |
Power consumption | ≤650W |
