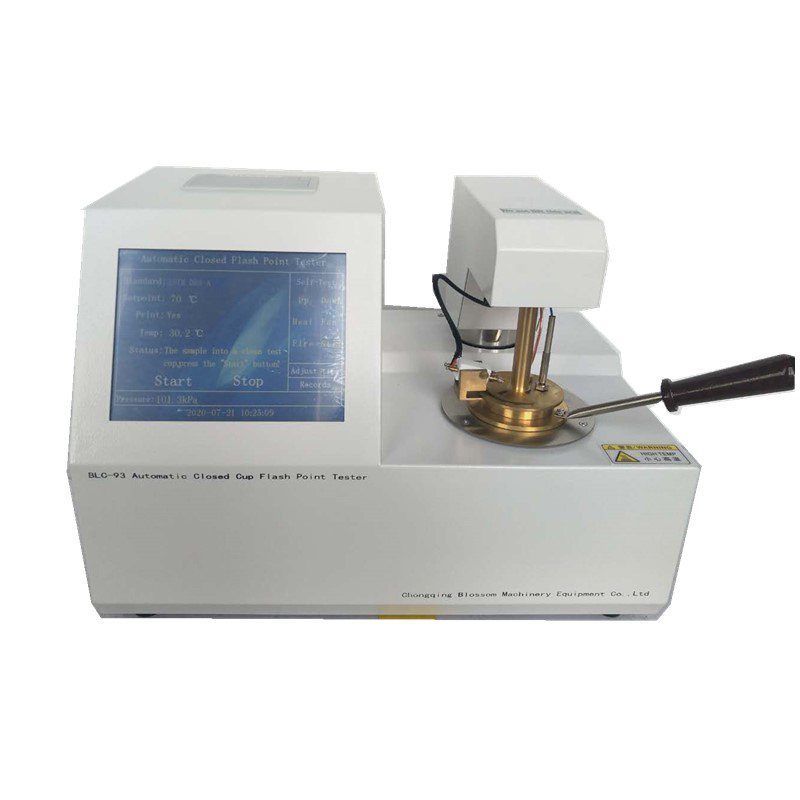

Automatic Pensky-Martens Closed Cup Flash Point Tester BLC-93

The instrument meets the requirements of national standard GB261-83 and SH/T0315, ASTM D93 and international standard ISO2719-88.
Availability:
Quantity:
Inquire Add to Basket

The instrument meets the requirements of national standard GB261-83 and SH/T0315, ASTM D93 and international standard ISO2719-88. It is controlled by microcomputer. It is automatic electronic ignition without the need of gas source. It is reliable and easy to operate with self-test function, high measurement accuracy, good repeatability and stable performance. It is an ideal instrument for closed flash point testing in petroleum, chemical, power, environmental protection, railway and scientific research, etc.


1.Touch type color English LCD display;

2.Adaptive PID control algorithm to automatically adjust heating curve according to standard requirements;

3.Automatic stirring, ignition, detection, alarm, cooling and printing;

4.Safe airless source platinum alloy electric wire ignition method, which is stable and reliable with high test accuracy;

5.Powerful data storage that 300 results can be stored.


Display

Touch type color LCD display

Measurement mode

Thermocouple differential detection

Measurement range

Room temperature-350℃

Resolution

0.1℃

Repeatibility

National standard：Tolerance ±1℃ at flash point value<104℃，±2℃ at flash point ≥104℃

International standard: Tolerance ±1°C at flash point ≤110℃, ±2℃at flash point >110℃

Printer

High-speed thermal printer, 56 mm paper width

Temperature detection

Imported platinum resistance（Pt100Ω）

Cooling mode

Forced air cooling

Working environment

Temperature:10℃-45℃，Humidity: 30-80%

Power supply

AC220V±10%

Dimensions

450*280*290 mm

Weight

About 15KG
