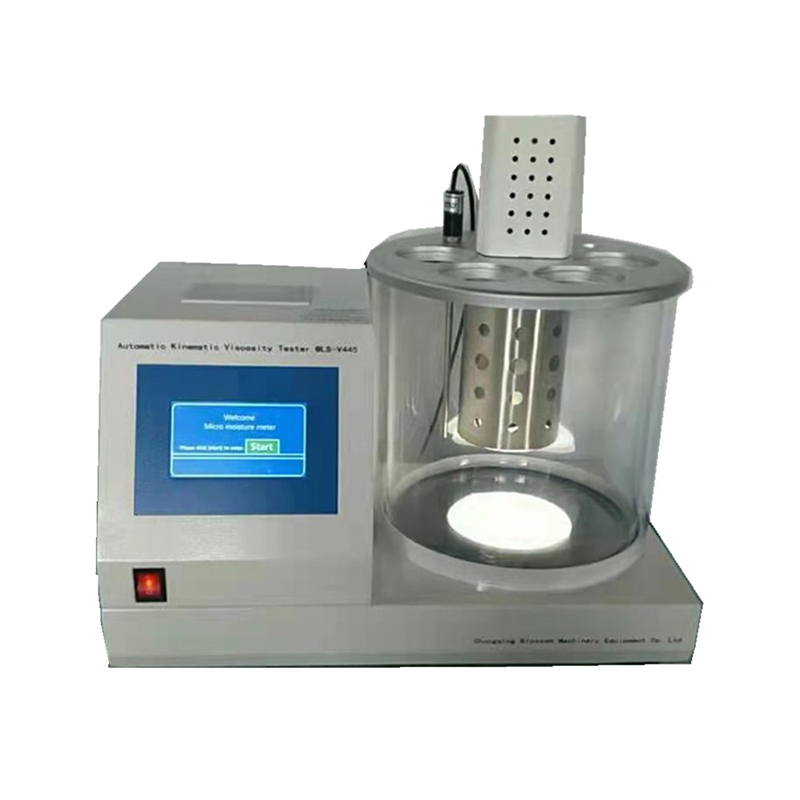

The instrument complies to ASTM D445, national standard GB265-88. It adopts advanced single-chip control, English display, automatic results printing and uniform temperature of the constant temperature bath. Four viscometers can be placed at the same time. It can also be used to perform other experiment as high viscosity constant temperature bath.
The instrument complies to ASTM D445, national standard GB265-88. It adopts advanced single-chip control, English display, automatic results printing and uniform temperature of the constant temperature bath. Four viscometers can be placed at the same time. It can also be used to perform other experiment as high viscosity constant temperature bath.
1.The instrument adopts advanced single-chip intelligent temperature control, timely temperature display working status such as time and other parameters;
2.It has outer plexiglass insulation cover with uniform temperature distribution in the bath, which has good temperature control effect;
3.Four samples can be simultaneously used for the test, which makes the experiment faster and more convenient;
4.The heater and other components are made of stainless steel that is resistant to corrosion and durable. It has LED lighting with long service life and is easy to observe;
5.The capillary meter card adopts three-point vertical type, which is flexible and convenient to operate with tight clamping.
6. Automatic calculation of kinematic viscosity values and test averages, and automatic printing and storage of measurement results;
7.The number of experiments can be freely adjusted for 1-6 times, and parallel experiments can be performed on two or more oil samples at the same time.
1.The instrument adopts advanced single-chip intelligent temperature control, timely temperature display working status such as time and other parameters;
2.It has outer plexiglass insulation cover with uniform temperature distribution in the bath, which has good temperature control effect;
3.Four samples can be simultaneously used for the test, which makes the experiment faster and more convenient;
4.The heater and other components are made of stainless steel that is resistant to corrosion and durable. It has LED lighting with long service life and is easy to observe;
5.The capillary meter card adopts three-point vertical type, which is flexible and convenient to operate with tight clamping.
6. Automatic calculation of kinematic viscosity values and test averages, and automatic printing and storage of measurement results;
7.The number of experiments can be freely adjusted for 1-6 times, and parallel experiments can be performed on two or more oil samples at the same time.
Test standard | GB265-88,GB1814,ASTM D445,IP71,etc. |
Display | 7inch LCD display |
Temperature control range | Arbitrary set from room temperature~100℃ |
Measuring range | Kinematic viscosity measuring range:0.5~20000mm2/s Dynamic viscosity measuring range:0.3~40000mPa.s |
Temperature control accuracy | ±0.1℃或0.01℃ |
Timing accuracy | ±0.1S |
Timing range | 0.1S-999.9S |
Constant temperature bath | 250×250mm, double layer |
Printer | Low-power consumption thermal printer with paper width 55mm |
Temperature measurement element | Imported precise platinum resistance |
Stirring speed | 1520r/min |
Maximum power consumption | 1800W |
Sampling number | 4 |
Ambient environment | Ambient temperature:15--35℃ ambient humidity< 85% |
Power supply | 220V ±10%50Hz±1Hz(can be customized) |
Dimensions | |
Weight | About 18kg |
Test standard | GB265-88,GB1814,ASTM D445,IP71,etc. |
Display | 7inch LCD display |
Temperature control range | Arbitrary set from room temperature~100℃ |
Measuring range | Kinematic viscosity measuring range:0.5~20000mm2/s Dynamic viscosity measuring range:0.3~40000mPa.s |
Temperature control accuracy | ±0.1℃或0.01℃ |
Timing accuracy | ±0.1S |
Timing range | 0.1S-999.9S |
Constant temperature bath | 250×250mm, double layer |
Printer | Low-power consumption thermal printer with paper width 55mm |
Temperature measurement element | Imported precise platinum resistance |
Stirring speed | 1520r/min |
Maximum power consumption | 1800W |
Sampling number | 4 |
Ambient environment | Ambient temperature:15--35℃ ambient humidity< 85% |
Power supply | 220V ±10%50Hz±1Hz(can be customized) |
Dimensions | |
Weight | About 18kg |
