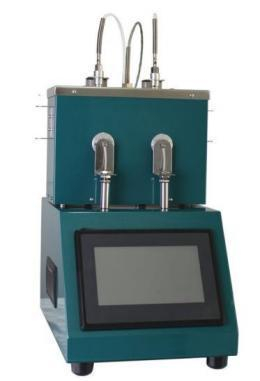

Wide Temperature Range Dropping Point Tester for Lubricating Greases BLS-2265 (Automatic Type)

Availability:
Quantity:
  • BLS-2265

  • BLS

  • 90278990

Product  Description

Automatic Wide Temperature   Range   Dropping    Point Tester for   Lubricating  Greases    is   designed and   manufactured  strictly  according  to   ASTM   D2265   and  National  Standard  GB/T  3498 .   It  is applicable to the automatic determination of  lubricating grease  dropping  point when  its first drop reaches the bottom of the test tube.


Features

7   Inch   LCD   touch  screen   HMI  with  beautiful  outlook  design.

Full   English  operating  system  is stalled.

 Instruction  interfaces  are clearly  displayed to provide guide for test completion.

High- performance  microprocessor  as  core  of  MCU,   fully  automatic  control  throughout  the  whole test  procedures.

Highly  integrated  bench top  instrument with  multiple functions.

Specially  designed  photoelectric  sensor  for  dropping  point  detection  with  high  sensitivity  and  fast response.it features double sample holes,  single test or dual tests can be performed.

Fast temperature rising rate with        ± 1 C metal  bath temperature accuracy. It features fault self- diagnosis system and reminder functions.

Automatic test  results and experiments  number saving functions with auto test  results  printing. User-friendly and easy -to-operate,     average test time is  less than 2  mins.


Specifications

Operating voltage: AC220V, 50Hz

Operating power: 1200W

Metal bath type:  Aluminum

Sample channels:  2

Temperature sensor: A class PT100 * 2

Test method : auto photoelectric sensor

Temperature control range:  R.T. ~ 400C

Temperature  control  point  :   1 2 1 C, 2 3 2 C, 2 8 8 C, 3 1 6 C, 3 4 3 C

Temperature control accuracy:     ± 1 C

Test result capacity: automatic saving 256 test results

Printing method : auto thermal printer
