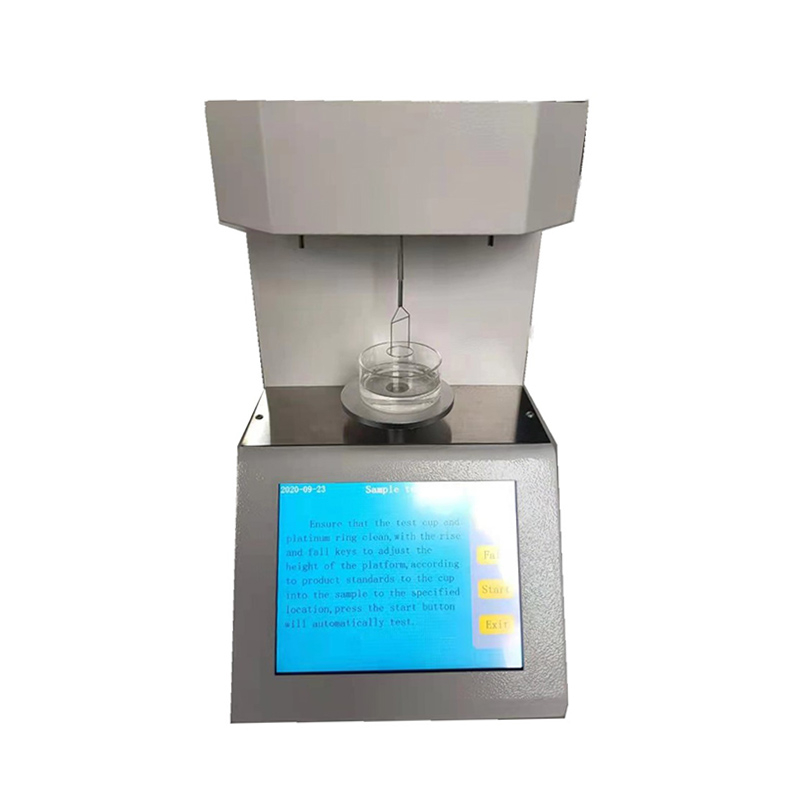

The instrument complies to ASTM D971 platinum ring method is widely used to measure interfacial and surface tension for various liquids and petroleum products such as transformer oil, lube oil, turbine oil, hydraulic oil, etc. The equipment is fully automatic that only pressing the “start” button can finish the tension value calculation according to the input parameters.
The instrument complies to ASTM D971 platinum ring method is widely used to measure interfacial and surface tension for various liquids and petroleum products such as transformer oil, lube oil, turbine oil, hydraulic oil, etc. The equipment is fully automatic that only pressing the “start” button can finish the tension value calculation according to the input parameters.
1.Adopts original and fast-response electromagnetic force balance sensor and microprocessor intelligent control to improve measurement accuracy and linearity;
2.Only one calibration point is required, no need of zero adjustment potentiometer and full range potentiometer;
3.Integrated temperature detection circuit and automatic temperature compensation of the test results to avoid the impact of temperature on the tension value;
4.Automatically zeroes, measures, calculates, displays print results, and 300 pieces of measurement results can be stored;
1.Adopts original and fast-response electromagnetic force balance sensor and microprocessor intelligent control to improve measurement accuracy and linearity;
2.Only one calibration point is required, no need of zero adjustment potentiometer and full range potentiometer;
3.Integrated temperature detection circuit and automatic temperature compensation of the test results to avoid the impact of temperature on the tension value;
4.Automatically zeroes, measures, calculates, displays print results, and 300 pieces of measurement results can be stored;
Display | large LCD English display screen |
Measurement method | Platinum ring |
Platinum ring radius | R9.55; platinum wire r0.3 |
Measurement range | 0-200mN/m. |
Sensitivity | 0.1mN/m |
Accuracy | ±0.1mN/m |
Self-checking | Breakdown auto diagnostics |
Temperature compensation | Automatic temperature compensation |
Power | Less than 40W |
Dimension | 185×260×360mm |
Working environment | Temperature:10℃-40℃; Humidity: ‹80% |
Power supply | AC220V±10%, 50HZ±2.5HZ(customizable) |
Weight | About 6kg |
Display | large LCD English display screen |
Measurement method | Platinum ring |
Platinum ring radius | R9.55; platinum wire r0.3 |
Measurement range | 0-200mN/m. |
Sensitivity | 0.1mN/m |
Accuracy | ±0.1mN/m |
Self-checking | Breakdown auto diagnostics |
Temperature compensation | Automatic temperature compensation |
Power | Less than 40W |
Dimension | 185×260×360mm |
Working environment | Temperature:10℃-40℃; Humidity: ‹80% |
Power supply | AC220V±10%, 50HZ±2.5HZ(customizable) |
Weight | About 6kg |
