| Quantity: | |
|---|---|

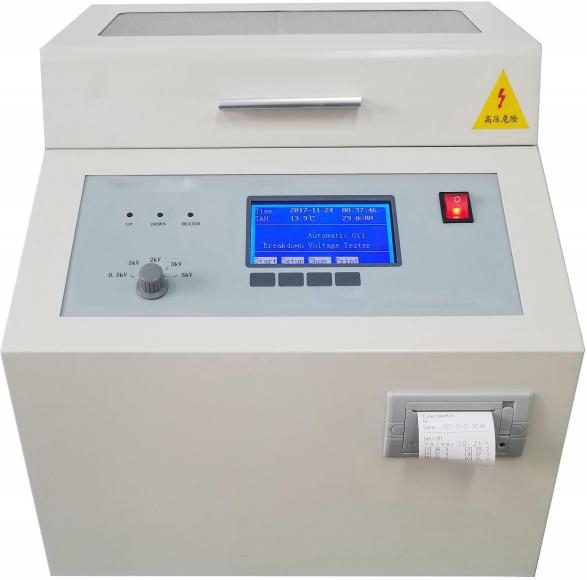

BDV-165
BLS
90278990
Application
The instrument is produced as per the newest international standard such as ASTM D1816,IEC156,ASTM D877. which adopts industrial single plate intergrated circuit,new-style I/O ports,with unique inspection and anti-jamming technology to greatly improve its reliability
and functionality.
Functions and characteristics
1. The instrument is controlled by a large capacity single chip microcomputer, and the work is stable and reliable.
2. There is a wide range watchdog circuit in the instrument to eliminate the phenomenon of death.
3.A variety of operation options, the instrument with GB1986, GB2002 ,IEC156 three national standard methods and custom operation, can adapt to different users of a variety of choices; 4.An instrument using special glass mold for one time, prevent the occurrence of oil spills and other interference phenomenon;
5. The unique high voltage terminal sampling design of the instrument allows test values to directly enter the A/D converter, avoiding the errors caused by analog circuits, and making the measurement results more accurate.
6. The instrument has the functions of over current, overvoltage, short circuit and so on, and has very strong anti-interference ability and good electromagnetic compatibility.
7. Portable structure, easy to move, easy to use both inside and outside.
Main Technical Parameters
Output Voltage | 0~80 kV ，0~ 100KV |
Input voltages | 220VAC |
THVD | <1% |
Pressure rate | 0.5~5.0 kV/s |
Booster capacity | 1.5 kVA |
Measurement accuracy | ±2% |
Supply voltage | AC 220 V ±10% |
Power frequency | 50 Hz ±2% |
Power | 200 w |
Applicable temperature | 0~45℃ |
Applicable humidity | <85 % RH |
Size (Width * height * depth) | 410×390×375 (mm) |
Net weight | 32kg |
