BLS-1551
BLS
90278990
Ⅰ.Application

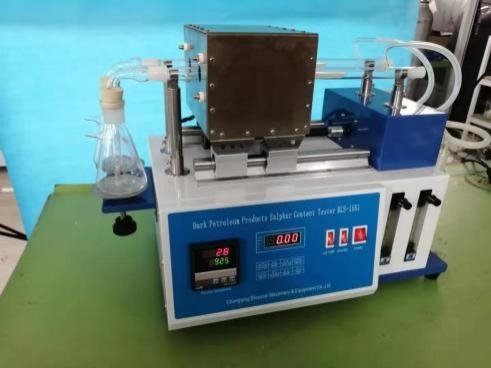

The instrument is designed according to ASTM D1551 and GB / T387 , applicable to analyze the sulfur content in lubricating oil, crude oil,residual oil and dark petroleum
products(heavy fuel oil , petroleum coke and paraffin, etc.) through tube furnace method.
Ⅱ.Features
1. Adopts advanced PID fuzzy logic temperature control system from abroad with accurate temperature control;
2.Adopts modular programming, the travel/residence time of the resistance furnace trolley can be set arbitrarily.
3. The gas circuit adopts negative pressure system; each interface is connected through grinding port , which is air-tight and convenient for installation and disassemble;
4. Simultaneous operation of the double quartz tubes , sharing air purification system , separate flow control.
5. The furnace body adopts imported stainless steel sand plate shell, which is beautiful and resistant to heat and corrosion.
Ⅲ.Technical Parameters
Power supply | AC220V±10% 50Hz(can be customized) |
Heating power | 1.8KW |
Temperature control range | 90 0 ℃ ~95 0 ℃ ( continuously arbitrary setting) |
Furnace travel time | Arbitrarily setting from 25-65 minutes |
Furnace stroke | 145mm |
Thermocouple indexing number | Type K |
Temperature control accuracy | ±1℃ |
Flow meter flow rate | 0—1000ml/min |
Dimensions& Weight | 92*73*49 (cm),50Kg |
