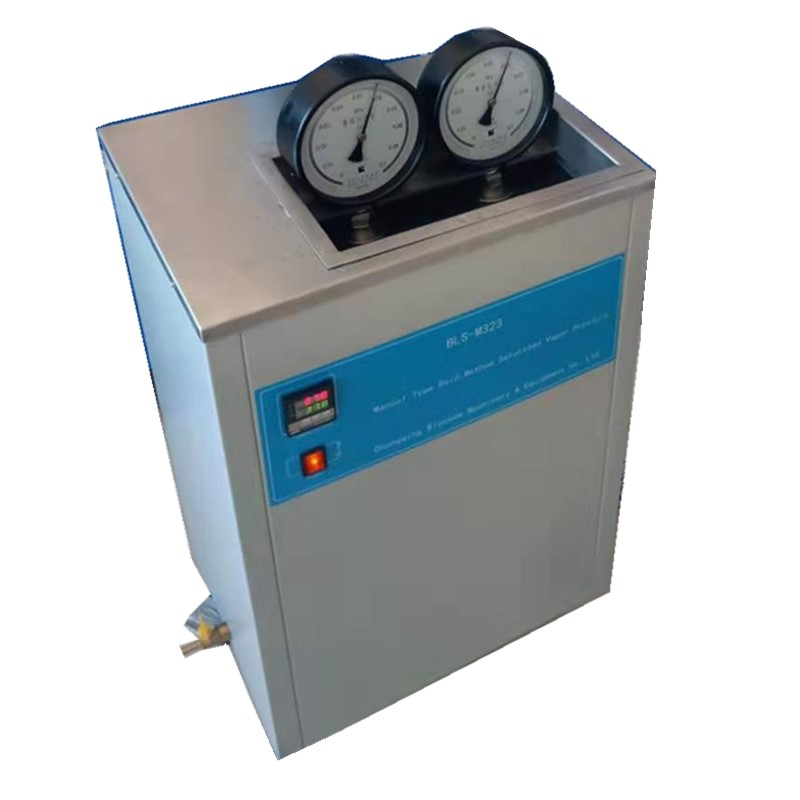

BLS-M323
BLS
90278990
I. Application
The instrument is designed and manufactured according to GB/T8017-2012 and ASTM D323, suitable for measuring the vapor pressure of gasoline, volatile crude oil and other volatile petroleum products.
II. Features
1. Control mode: temperature control system, digital display, accurate temperature control.
2. Anti-rust stainless steel bath and shell.
3. The instrument is designed to be floor-standing. The instrument is equipped with two bombs.
4. The instrument can hang two test bombs, which can be used separately or simultaneously.
5. Adopt advanced foreign PID temperature control technology. PID parameters can be self-tuning.
6. It is equipped with pressure indicator display gauge. The bomb body is equipped with on-off valve for filling and discharging gas.
III. Technical Parameters
1. Working power supply: AC220V±10 50Hz(Customizable)
2. Power: 2000W
3. Temperature control range: room temperature to 100℃; Accuracy: ± 0.1 ℃
4. Temperature sensor: Pt100 (platinum resistance)
5. Pressure range: 1Mpa (0.4 level) 2.5Mpa (0.4 level)
6. Humidity ≤ 85%
7. Temperature control mode: digital display temperature controller
