BLS-892
90278990
I.Application

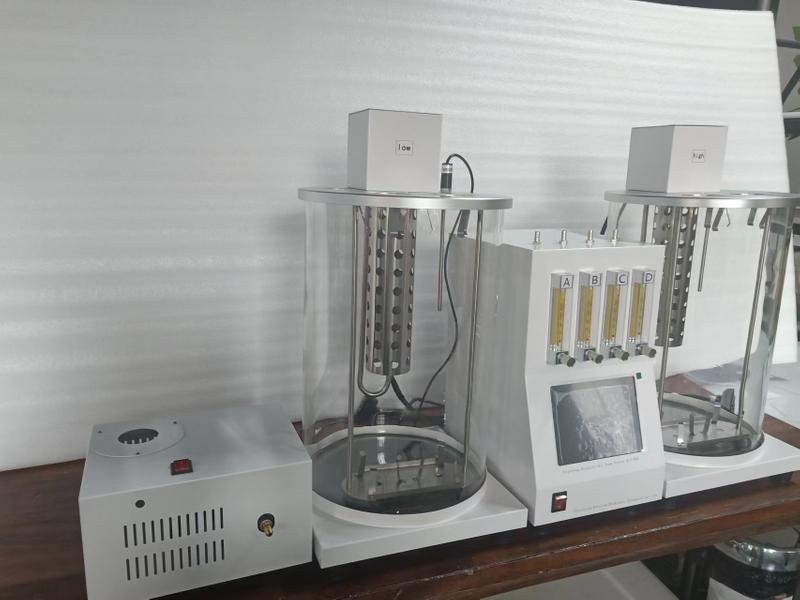

The foam tester is designed and made as per the national standard public of china GB/ T1 2 5 7 9 test
method and ASTMD8 9 2 Standard for Foaming Characteristics of Lubricating Oils This instrument can test foam characteristics of engine lubricating oil, gear oil and hydraulic oil , and used to assess the foam
characteristics and stability of petroleum oil. BLS-89 2 petroleum oil foam tester can automatic control
temperature, automatic timing, centralized control a ir source and gas flow. Control with the latest 3 2 - bit ARM processor and PID temperature control and setting techno logy. Color LCD screen display . This
instrument suitable for testing lube oil, fire resistant oil, gear oil and hydraulic oil.
II . Feat u res
1. The instrument isin the form of a split machine, and the constant temperature bath is a round hard glass cylinder, which is beautiful in appearance and convenient for observation. It is equipped with
separate cooling source.
2. Adopting the PID self-tuning temperature control system independently developed by foreign
advanced technology, the temperature control is accurate, the performance is reliable and stable, and the temperature control accuracy is ±0.02℃.
3. The instrument has 4 holes, which can perform 2 groups of sample manipulation experiments simultaneously/individually. 1
4. The operation interface adopts 10-inch touch screen LCD display, equipped with timer, which is Convenient for recording the experimental time during the experiment.
5. The flow meter cabinet is equipped as a whole, which is convenient for foam characteristics
experiments, and is equipped with air pump and gas filter device to meet the requirements of foam characteristics experiments.
III. Technical parameters
1 . power supply：AC220V± 10% ，50Hz；
2 . Display mode ：color LCD screen； 3 . Temperature range：5~99 . 9 C；
4 .Temperature sensor: Platinum resistance, Pt 100 ； 5 . Sample hole: four (double bath)
6 . Cylinder specification： 1000mL
7 . Timing accuracy: 0 . 01%+0 . 05s( 20 C)
8 . Heating power:2500W (93 . 5C bath) 800W ( 24C bath)
9 . Temperature control accuracy: ± 0 . 1 C 10 . Ambient temperature: (- 10~+40) C； 11 . Relative humidity: ≤ 85%；
