BLS-893
BLS
90278990
I.Application

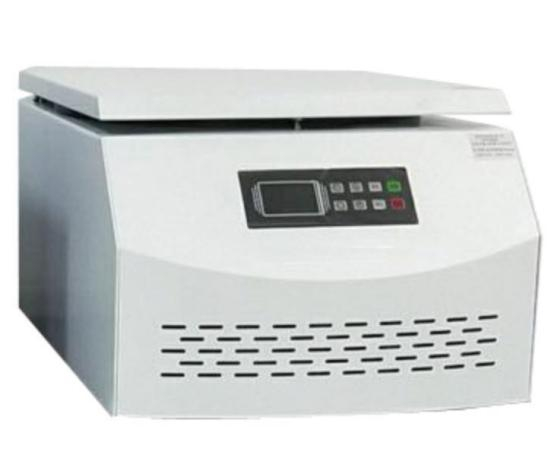

The BLS-893 insoluble experiment centrifuge is a conventional instrument used for
centrifugal precipitation in medicine and biology. The maximum speed is 5000r/min, the maximum capacity is 4 × 100ml, and the maximum centrifugal force is 4300×g.
This instrument is driven by a variable frequency motor, the speed and time are all displayed on the LCD screen, and the electrical control system is controlled by a
microprocessor. It is programmed by buttons, easy to operate, and the instrument is designed with a humane appearance and simple structure.
The door cover of this instrument adopts an electronic safe and reliable door lock. If the door cover is not closed (the door lock is not locked), the instrument cannot be started. Do not open the door cover while the instrument is running! The door cover can only be
opened when the speed is zero. If the door cover is unlocked by mistake, the instrument will automatically stop and give an alarm to ensure the safety of the instrument during use. This instrument adopts an optimized design scheme for the shock absorption system, and the instrument runs smoothly, with little vibration, low noise, and good separation effect.
II.Features
a. Automatically store all the parameters that have been run, and can be used directly next time when the machine is turned on;
b. When the speed exceeds the maximum speed of 500r/min, it will automatically reduce the speed and stop protection;
c. There are multiple protection functions such as door cover and overspeed.
This instrument complies with YY/T 0657-2017 medical centrifuge industry standard
III.Technical Parameters
Maximum Speed | 5000 r/min |
Maximum Centrifugal Force | 4300×g |
Maximum Capacity | 4 × 100ml (petroleum pipeline) |
Speed Accuracy | ±50r/min |
Timer Range | 1~99min |
Temperature Control | 20-90℃ |
Power | 1450w |
Drive mode | Variable frequency motor drive |
Temp Accuracy | ±2℃ |
Ventricular diameter | 500mm |
Power Supply | 220V 50Hz 10A(Customizable) |
Noise | ≤65dB(A) |
Dimensions(L ×W × H (cm)) | 68*49*75cm |
Weight | 70 Kg |
