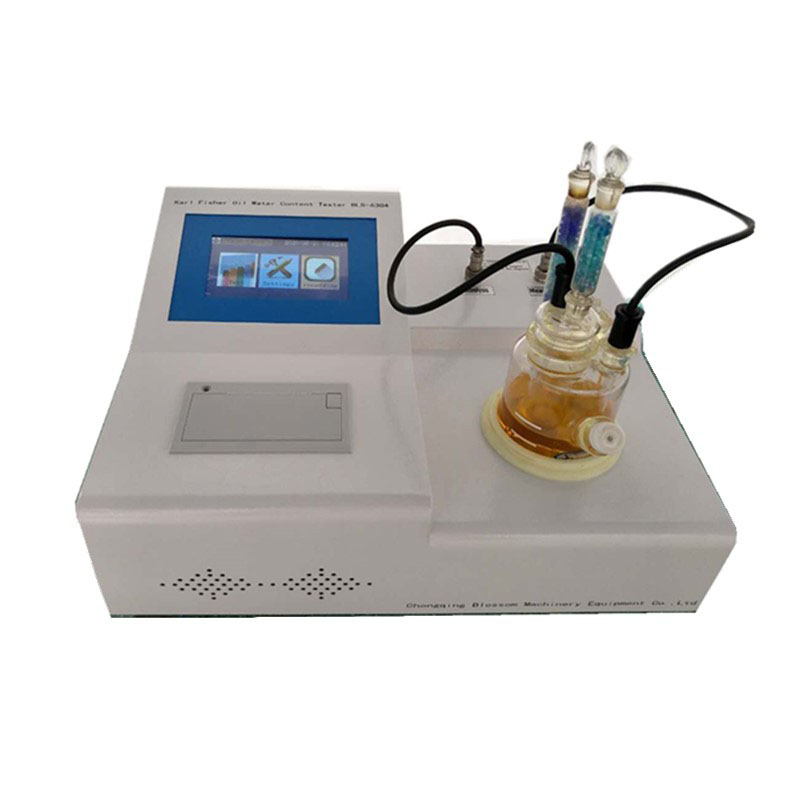

Karl Fisher Oil Water Content Tester BLS-6304

The instrument complies to ASTM D1533,D6304 and D1744 , widely used to analyze the moisture content in petroleum products such as transformer oil, lube oil, engine oil, turbine oil and diesel fuel, etc.

Availability:

Quantity:


Inquire Add to Basket

The instrument complies to ASTM D1533,D6304 and D1744 , widely used to analyze the moisture content in petroleum products such as transformer oil, lube oil, engine oil, turbine oil and diesel fuel, etc. It is an ideal water content measurement instrument in institutions,petroleum enterprises, chemical industry, power, pharmaceuticals, pesticide, railways and research, etc.

Display	7 inch color touch LCD screen (resolution 800*600 pixels)
Measurement mode	MPU controlled electrolysis (Karl Fischer Coulometric method)
Electrolysis current	Automatic control within 430mA
Rate of electrolysis	2.4mg H2O/min
Displayed Measurement range	0.01ug water - 200mg water
Sensitivity	0.01ug water
Water content range	0.0001%(1ppm)-100%
Accuracy	Moisture content: 2ug-100ug, deviations≤±1ug; Moisture content: 100ug-1000ug, deviations≤±2.9ug, Moisture content: ＞1000ug, deviations≤±0.2%(injection error not included))
Drift compensation	Automatic MPU control
End point indication	LCD display / printout / audible warning / end point indication light
Printer	Low-energy high-speed thermal printer with 44 mm paper
Printing content	ug/ppm/mg/L/ sample number/ experimenter/ date
Stirring speed	Adjustable and stterable
Data input	Input via touch screen
Calendar/Clock	Automatic display and print analyzing time and date
Sample number	Numbered by users
Self-checking	Breakdown self-checking
Special function	Independent working or connection with laptop or computer
Power consumption	<40W
Storage	Infinite storage capacity
Dimensions	390×270×190mm
Working environment	Temperature:5℃-40℃，humidity:‹85%
Power supply	AC220V±10% 50HZ±2.5HZ(can be customized)
Weight	About 15kg

Display	7 inch color touch LCD screen (resolution 800*600 pixels)
Measurement mode	MPU controlled electrolysis (Karl Fischer Coulometric method)
Electrolysis current	Automatic control within 430mA
Rate of electrolysis	2.4mg H2O/min
Displayed Measurement range	0.01ug water - 200mg water
Sensitivity	0.01ug water
Water content range	0.0001%(1ppm)-100%
Accuracy	Moisture content: 2ug-100ug, deviations≤±1ug; Moisture content: 100ug-1000ug, deviations≤±2.9ug, Moisture content: ＞1000ug, deviations≤±0.2%(injection error not included))
Drift compensation	Automatic MPU control
End point indication	LCD display / printout / audible warning / end point indication light
Printer	Low-energy high-speed thermal printer with 44 mm paper
Printing content	ug/ppm/mg/L/ sample number/ experimenter/ date
Stirring speed	Adjustable and stterable
Data input	Input via touch screen
Calendar/Clock	Automatic display and print analyzing time and date
Sample number	Numbered by users
Self-checking	Breakdown self-checking
Special function	Independent working or connection with laptop or computer
Power consumption	<40W
Storage	Infinite storage capacity
Dimensions	390×270×190mm
Working environment	Temperature:5℃-40℃，humidity:‹85%
Power supply	AC220V±10% 50HZ±2.5HZ(can be customized)
Weight	About 15kg

Karl Fisher Oil Water Content Tester BLS-6304
