BLS-130
BLS
90278990
I.Application

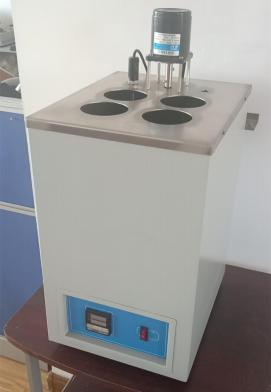

The instrument is designed and manufactured according to ASTM D130 and the requirements of the People's Republic of China Standard GB/T5096 Petroleum Products Copper Corrosion Test Method. It is applicable to measure the corrosion degree of the petroleum products such as aviation gasoline, aviation turbine fuel and motor gasoline, agricultural tractor fuels, washing solvents, kerosene distilled fuels and lubricating oils to copper strip.
II.Features
1.LCD temperature controller, heater and electric stirrer form a constant temperature bath with uniform bath temperature. The temperature controller has a timing function, which is used for time control setting and automatic timing when the sample is tested. It has alarm prompt;
2. The instrument has 4 sample test holes. Each hole can be placed one test bomb or three test tube samples at the same time, which has high test efficiency;
3. It is equipped with original imported standard colorimetric plate from United States for comparison in the test.
III.Technical Parameters
Power supply | AC 220V±10%,50Hz |
Temperature sensor | Industrial platinum resistance, indexing number Pt100 |
Temperature control range | Arbitrarily set from room temperature-200℃ |
Temperature control accuracy | ±1℃ |
Temperature display | Digital display |
Temperature control heating power | 1600W |
Control time range | Arbitrarily set from 1min-24hours |
Sample hole | 4 |
Sample test number | 4-12 |
Ambient temperature | Room temeperature-35℃; |
Relative humidity | ≤85% |
Total power consumption | ≤2000W |
Dimensions | 260×400×620mm（L×W×H） |
