BLS-2272
BLS
90278990
Description

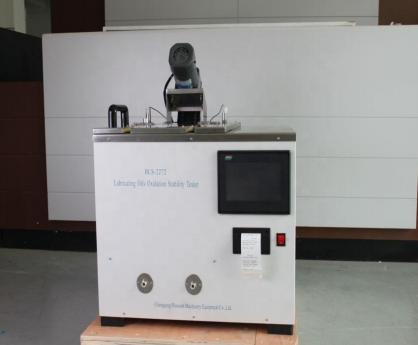

BLS-2272 Lubricating Oil Oxidation Stability Tester is designed and manufactured in strict accordance with Industrial Standard SH/T 0193 and ASTM standard ASTM D2272. It utilizes an oxygen-pressured vessel to evaluate
the oxidation stability of new and in-service turbine oils having the same composition in the presence of water and
a copper catalyst coil at 150℃.
Features
1.English user interface, test procedures fully automatic, intuitive and user-friendly. 2.High resolution 7 inches LCD color display,touch screen buttons.
3. High precision pressure sensor with fastresponse.
4. Instrument adopts fast rotating joint technology imported from the United States to ensure that 5.There is no air leakage from the rotating point under the condition of high rotating speed.
6. Stainless steel oxygen-pressured vessels. The instrument is equipped with double oxygen- pressured vessels, which enable tests to be performed simultaneously or separately.
7. Real time vessels' pressure is on display throughout the whole test procedures.
8.Microprocessor program control, test results can be automatically identified, stored andprinted.
9.The whole process of the test is controlled automatically. Automatic shutdown after test completion.
10. Automatic detection, automatic oxidation curve display, automatic storage and test result print
11. Testing data can be stored in the system and it is available to link with PC
Specifications
1. Power supply: AC220V ，50Hz
2. Mixing motor power: 60W
3. Heating power: 2000W
4. Oxygen-pressured vessel: 2 sets
5. Rotating speed: 100±2rpm
6. Pressure sensor measurement range: 0~1.6MPa
7. Pressure sensor measurement accuracy: 0.1% F.S.
8. Constant temperature bath: Oil bath
9. Temperature control range: R.T. ~ 200.0℃
10. Temperature control accuracy: ±0.1℃
11. Automatic test results detection & printing
12. Ambient temperature: 5~40℃
13. Relative humidity: <85%
14. Dimension: 540*660*620mm(final size can be changed within 10% versus specification)
