Introduction

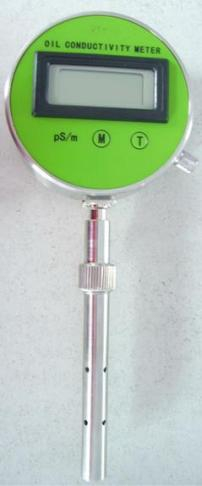

The instrument complies to ASTM D6264,used for the measurement of aviation and distillate fuels conductivity.It is widely used for use in civil or airport fuel gas station sites or oil testing laboratories.
1.Measurement range: 0-19999pS/m; resolution: 1pS/m;
(pS/m is the conductivity unit, which is equal to the US conductivity unit “cu”). 2.Accuracy: conductivity measurement accuracy:
0~2000pS±(2%+2pS);
2000~10000pS±(3%+2pS);
10000 to 20000pS±(5%+2 pS).
3.conductivity cell structure constant and structural accuracy: 1.00/m ± 2%; 4.Reading method:
Four and a half (19999) LCD digital display; With self-check button.
With function of reading and recording 3 seconds after the measurement.When necessary, open the back
cover of the instrument and turn the KO switch to ON.
5.Power supply
Built-in 6F22 type 9 volt laminated battery section, intermittent power supply.
6.Ambient environment
Temperature:–20~+40℃ Relative humidity≤85%
7.Structure and features
Semi-sealed structure
Intrinsically safe: iaAT5
Compact structure,and portable
8.Dimensions
Host:φ100×35mm
Electrode:φ14×140mm 9.Weight:0.5kg
