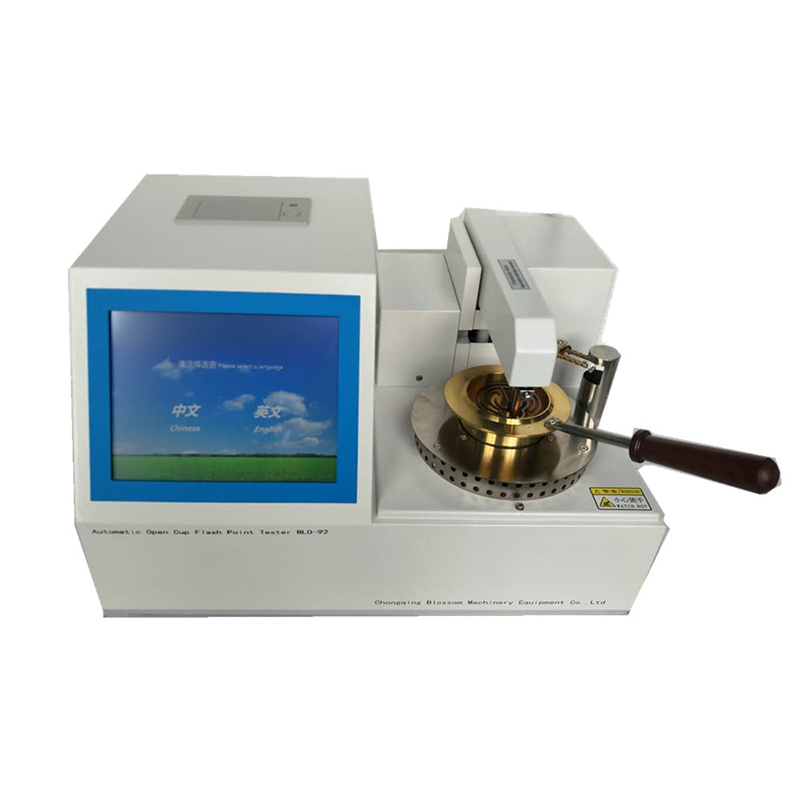

The instrument complies with ISO 2592, ASTM D92, GB267 and GB 3536, etc. It adopts microcomputer control, which is automatic. It supports color touch screen operation with high-speed thermal printer to automatically print test results and with fault self-test function. It is an ideal open cup flash point measurement instrument applied in the areas of petroleum, chemical, power, environmental protection, railway, scientific research .
The instrument complies with ISO 2592, ASTM D92, GB267 and GB 3536, etc. It adopts microcomputer control, which is automatic. It supports color touch screen operation with high-speed thermal printer to automatically print test results and with fault self-test function. It is an ideal open cup flash point measurement instrument applied in the areas of petroleum, chemical, power, environmental protection, railway, scientific research .
1.Color touch English LCD display;
2.Adopts adaptive PID control algorithm, automatically adjust the heating curve according to the standard requirements;
3.Powerful data storage function, which can store 300 results. Historical records can be referred to at any time;
4.Automatic detection, opening, ignition, alarm, cooling and printing, etc. throughout the test process;
5.Safe and airless platinum alloy electric wire ignition method, which is stable and reliable with high test accuracy;
1.Color touch English LCD display;
2.Adopts adaptive PID control algorithm, automatically adjust the heating curve according to the standard requirements;
3.Powerful data storage function, which can store 300 results. Historical records can be referred to at any time;
4.Automatic detection, opening, ignition, alarm, cooling and printing, etc. throughout the test process;
5.Safe and airless platinum alloy electric wire ignition method, which is stable and reliable with high test accuracy;
Display | 10 inch touch type color LCD display |
Measurement method | Thermocouple differential detection |
Measurement range | Room temeprature-400℃ |
Repeatibility | ±2℃ |
Temperature detection | Imported precision platinum resistance |
Ignition method | Electronic automatic ignition |
Self-check function | Printer, igniter, solenoid valve, detection arm lift, sweeping of ignition rod, etc. |
Working environment | Temperature: 10℃-45℃, humidity:30-80% |
Dimensions | 400×300×240mm |
Power supply | AC220V±10%(can be customized) |
Weight | About 20kg |
Display | 10 inch touch type color LCD display |
Measurement method | Thermocouple differential detection |
Measurement range | Room temeprature-400℃ |
Repeatibility | ±2℃ |
Temperature detection | Imported precision platinum resistance |
Ignition method | Electronic automatic ignition |
Self-check function | Printer, igniter, solenoid valve, detection arm lift, sweeping of ignition rod, etc. |
Working environment | Temperature: 10℃-45℃, humidity:30-80% |
Dimensions | 400×300×240mm |
Power supply | AC220V±10%(can be customized) |
Weight | About 20kg |
